Dettagli:
Termini di pagamento e spedizione:
|
| Modello no.: | YD21-007---YD21-010 | NOME: | Toe Jack economico |
|---|---|---|---|
| Colore: | Il normale in rosso ed in blu e può essere personalizzato | Trattamento di superficie: | rivestimento della polvere |
| MOQ: | 20pcs | Tempi di consegna: | 30 giorni dopo il deposito ricevuto |
| Uso: | industria pesante o apparecchio dell'ascensore | Certificazione: | CE |
| PAGAMENTO: | 1) T/T, deposito di 30%, 70% contro la copia di B/L. 2)L/C a vista | ||
| Evidenziare: | Toe Hydraulic Lifting Jack,5 Ton Hydraulic Lifting Jack,10 resistenti Ton Hydraulic Toe Jack |
||

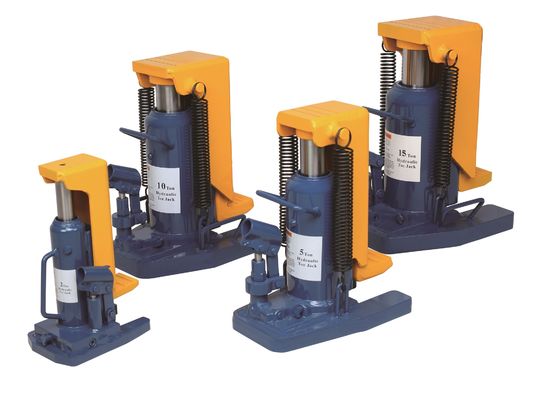

YD21-007/ Economic Toe Jack
Designed for lifting loads with very low minimum clearances (foot) or high clearances (head)
Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites
Great companion tool for machinery skates
Convenient swivel socket for easy operation in any direction on 5 and 10 ton models
Safety valve for overload protection
Features :
Technical Specification:
| Model No. | YD21-007 | YD21-008 | YD21-009 | YD21-010 | ||||||||||
| Toe Capacity | 4,400LB (2,000KGS) | 11,000LB (5,000KGS) | 22,000LB (10,000KGS) | 33,000LB (15,000KGS) | ||||||||||
| Head Capacity | 6,600LB (3,000KGS) | 13,200LB (6,000KGS) | 30,800LB (14,000KGS) | 44,000LB (20,000KGS) | ||||||||||
| Min./Max Toe Height | 0.7"(17mm) / 5.2"(132mm) | 1.06"(27mm) / 5.8"(147mm) | 1.22"(31mm) / 6.9"(176mm) | 1.22"(31mm) / 7.7"(196mm) | ||||||||||
| Min / Max Head Height | 9.2"(235mm)/13.8"(350mm | 11.5"(293mm)/16.25"(413mm) | 12.8"(327mm)/18.6"(472mm) | 13.58"(345mm)/20"(510mm) | ||||||||||
| Toe Size | 2"x2"(50x50mm) | 2.95"x2.2"(75x57mm) | 3.3"x2.36"(84x60mm) | 3.9"x2.75"(100x70mm) | ||||||||||
| Base Size | 7"x5"(178x125mm) | 10.6"x7.2"(270x183mm) | 11.3"x9.4"(287x240mm) | 11.8"x9.8"(300x250mm) | ||||||||||
| N.W./G.W. | 18.7/23lb(8.5/10.5kg) | 49.5/52.8lb(22.5/24kg) | 82.5/85.8lb(37.5/39kg) | 106.7/110lb(48.5/50kg) | ||||||||||
| Package Size | 9"x7"x9.8"(230x170x250mm) | 12.6"x9"x12.6"(320x230x320mm) | 13.4"x11.4"x14.2"(340x290x360mm) | 14.7"x11.8"x16"(374x300x405mm) |
Persona di contatto: Ms. Joyce Chou
Telefono: 86-18668380852
