2-Ton Portable Hydraulic Shop Crane | Auto Repair, 4-Level Lift, Easy Fold

Grande immagine : 2-Ton Portable Hydraulic Shop Crane | Auto Repair, 4-Level Lift, Easy Fold

Dettagli:

Luogo di origine:	Zhejiang ， Cina
Marca:	YEEDA
Certificazione:	CE
Numero di modello:	YD01-007

Termini di pagamento e spedizione:

Quantità di ordine minimo:	50 pezzi
Prezzo:	$165
Imballaggi particolari:	Scatola di cartone o cassa
Tempi di consegna:	30-45 giorni
Termini di pagamento:	T/T
Capacità di alimentazione:	500 pezzi/mese

Contatto

Descrizione di prodotto dettagliata

Capacità di carico nominale:	6600lb (3000 kg)	Distanza di sollevamento:	47 "-72" (120cm-183cm)
Campo di lavoro:	0-86.6 "(0-220cm)	Parametri del pacchetto 1:	Peso lordo (GW): 77 libbre (30 kg); Peso netto (NW): 72,6 libbre (28 kg); Dimensione del pacchetto:
Pacchetto 2 Parametri:	Peso lordo (GW): 162 libbre (72 kg); Peso netto (NW): 158 libbre (70 kg); Dimensione del pacchetto:	Pacchetto 3 parametri:	Peso lordo (GW): 35 libbre (18 kg); Peso netto (NW): 33 libbre (17 kg); Dimensione del pacchetto: 27
Massimo. Capacità::	2 TONNELLATE	Gamma di sollevamento:	0–2300 mm
Dimensioni del telaio:	1500 mm(A) × 1760 mm(L) × 1220 mm(L)	Interasse:	Anteriore 1020 mm, posteriore 660 mm
Peso netto:	85 kg	Sistema di alimentazione:	Pompa idraulica a due velocità
Evidenziare:	2-ton portable hydraulic shop crane , auto repair engine hoist , foldable 4-level lift crane

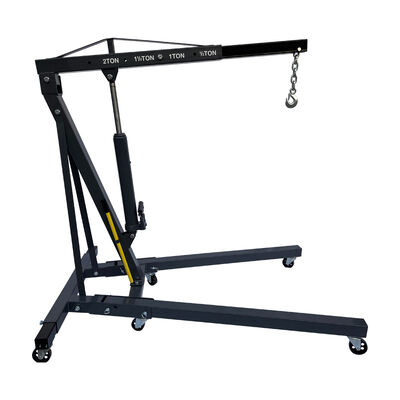

YEE DA 2-Ton Portable Hydraulic Shop Crane

Flexible Lifting with Easy Storage for Auto Repair

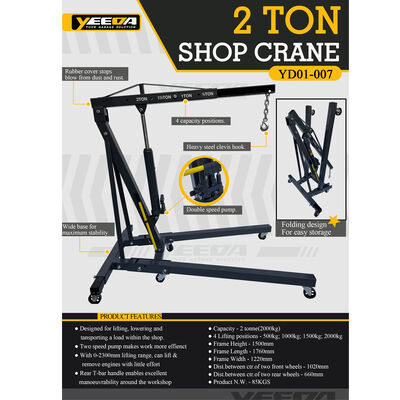

Product Specifications

Max. Capacity	2 tons (4 adjustable levels: 500kg / 1000kg / 1500kg / 2000kg)
Lifting Range	0-2300mm
Frame Size	1500mm(H) × 1760mm(L) × 1220mm(W)
Wheelbase	Front 1020mm, Rear 660mm
Net Weight	85kg
Power System	Two-speed hydraulic pump
Hook Type	Heavy-duty steel hook with dust/rust protection rubber cap

Product Features

Designed for workshop and garage environments, this 2-ton crane features a two-speed hydraulic pump for fast lifting and precise positioning. The arm clearly displays four load capacity markings. The wide base and four swivel casters (two with brakes) ensure stable and flexible operation.

Two-speed hydraulic system: Combines efficiency with control for optimal performance
Dust & rust protected hook: Extends service life in demanding workshop conditions
Rear T-handle: Easy steering and movement for precise positioning

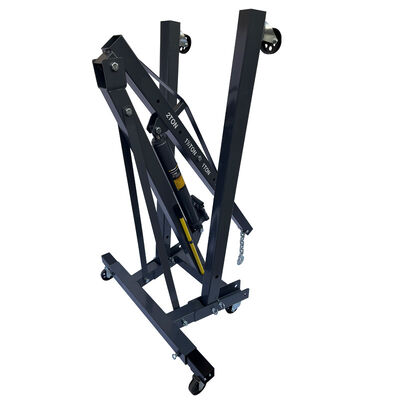

Quick folding design: Folded height ~850mm, saves valuable storage space
Wide base stability: Enhanced safety during lifting operations

Applications

Auto repair: Engine and transmission removal/installation
Equipment assembly: Positioning and assembling heavy machinery
Workshop handling: Short-distance lifting of molds and materials
Garage DIY: Vehicle modification and large tool handling

Frequently Asked Questions

Can the crane be overloaded?

Overloading is strictly prohibited. Always follow the marked load levels (½ TON, 1 TON, 1½ TON, 2 TON) on the arm. Overloading may cause structural damage or safety hazards.

Does the hydraulic pump require maintenance?

It is recommended to check the hydraulic oil condition every 6 months and keep the pump clean. When not in use for extended periods, lower the boom completely.

Can it be used on slopes or uneven ground?

Use only on flat, solid surfaces. If the ground is slightly uneven, use leveling plates to prevent movement and ensure stability.

What are the dimensions when folded?

Folded height is approximately 850mm, length ~1200mm. It can be stored upright against a wall to save valuable workshop space.

Storage Note: When folded, this crane occupies minimal space with dimensions of approximately 850mm height × 1200mm length, making it ideal for workshops with limited storage area.
